Whoops, no products on this site match that criteria!



2.1mm x 12mm

3D Model

Injector


Chip info:

Specs:

  • NTAG216 chip; Datasheet
  • 7 Byte non-changeable UID
  • 888 Bytes of user memory

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Access control


2.1mm x 15mm

3D Model

Injector


Chip info:

Specs:

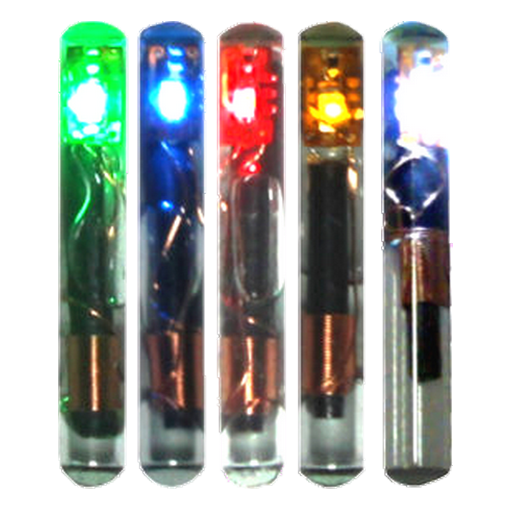

  • In the process of being replaced by the NExT v2. May not restock?
  • Dsruptive SIID OEM module
  • NTAG I2C Plus 2K chip; Datasheet
  • 7 Byte non-changeable UID
  • 888 Bytes of NDEF memory
  • 1912 Bytes of user memory (More Info)
  • Available in green, blue, red, or white!

Uses:

  • Blinky! :D
  • NFC/NDEF capabilities
  • Computer login
  • Access control

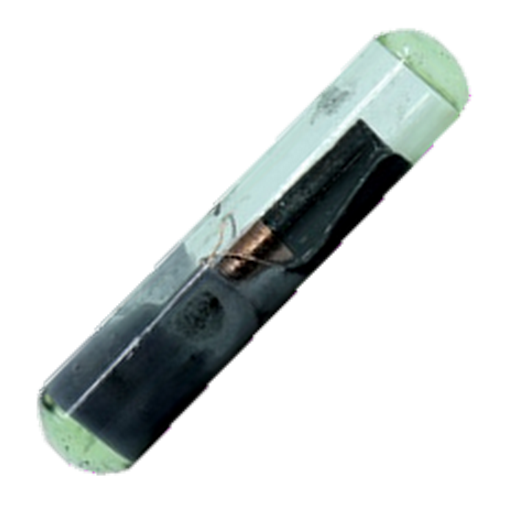

3mm x 14mm

3D Model

Injector

a

Chip info:

Specs:

  • Magic Mifare Classic chip; Datasheet
  • 4 Byte changeable UID
  • Available as Gen1a or Gen2
  • ~700 Bytes of user memory

Uses:

  • Clone certain HF credentials
  • Computer login
  • Access control
  • Limited NFC/NDEF capabilities


2.1mm x 12mm

3D Model

Injector


Chip info:

Specs:

  • ICODE SLIX2 chip; Datasheet
  • NFC Type 5 - ISO 15693
  • 8 Byte non-changeable UID
  • 320 Bytes of user memory

Uses:

  • NFC/NDEF capabilities
  • Access control


3mm x 13mm

3D Model

Injector


Chip info:

Specs:

  • Mifare DESFire EV3 chip; Datasheet
  • 7 Byte non-changeable UID
  • Supports randomized UID
  • 8 Kilobytes of user memory
  • Data authenticity by 8 byte CMAC

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Access control


3mm x 13mm

3D Model

Injector


Chip info:

Specs:

  • Mifare DESFire EV2 chip; Datasheet
  • 7 Byte non-changeable UID
  • Supports randomized UID
  • 8 Kilobytes of user memory

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Access control


2.1mm x 14mm

3D Model

Injector


Chip info:

Specs:

  • NFC Type 4 - ISO 14443-A chip
  • Capable of AES128 encryption
  • Setup with mobile app
  • Plug & play cryptobionic implant

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Limited crytographic security functions
  • Access control

Chip info:

Specs:

  • Based on the VivoKey Apex
  • Subdermal security key
  • JCOP 4 / Java Card 3.0.5 Support
  • 83872 Bytes of app EEPROM
  • Setup with mobile apps
  • Plug & play cryptobionic implant

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Crytographic security functions
  • Access control
  • Unlock your Tesla
  • Java applets
  • NOT payment enabled!

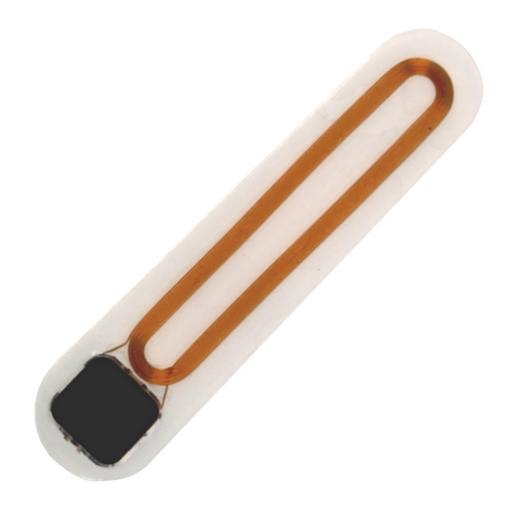

8mm x 28mm

3D Model

Flex Needle


Chip info:

Specs:

  • Subdermal security key
  • JCOP 4 / Java Card 3.0.5 Support
  • 83872 Bytes of app EEPROM
  • Setup with mobile apps
  • Plug & play cryptobionic implant

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Crytographic security functions
  • Access control
  • Unlock your Tesla
  • Java applets
  • NOT payment enabled!


14mm x 35mm

3D Model

Scalpel


Chip info:

Specs:

  • Subdermal security key
  • JCOP 4 / Java Card 3.0.5 Support
  • 83872 Bytes of app EEPROM
  • Setup with mobile apps
  • Plug & play cryptobionic implant

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Crytographic security functions
  • Access control
  • Unlock your Tesla
  • Java applets
  • NOT payment enabled!


22mm x 1.9mm

3D Model

Scalpel


Chip info:

Specs:

  • RGB blinky!! :D!!!
  • Available with fast or slow fashing LEDs
  • Subdermal security key
  • JCOP 4 / Java Card 3.0.5 Support
  • 83872 Bytes of app EEPROM
  • Setup with mobile apps
  • Plug & play cryptobionic implant
  • USP Class VI, ISO 10993 Biocompatible Resin

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Crytographic security functions
  • Access control
  • Unlock your Tesla
  • Java applets
  • NOT payment enabled!

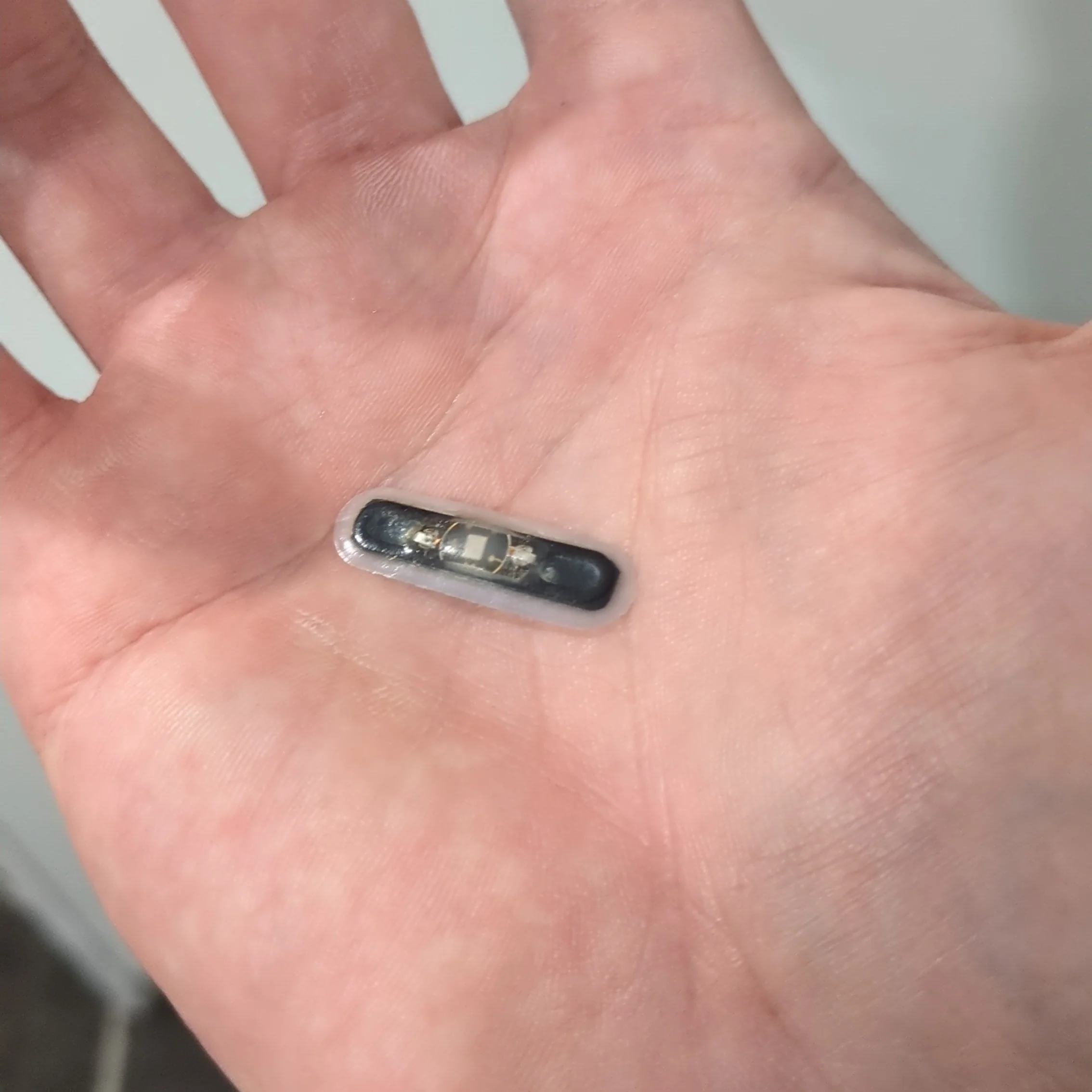

Flex Needle

Or

Scalpel


Chip info:

Specs:

  • Subdermal security key
  • Available in several sizes:
  • J3R452 - JCOP 4.5
  • ~162k Bytes of app EEPROM (Double the Apex 1!)
  • Setup with mobile apps
  • Plug & play cryptobionic implant
  • USP Class VI, ISO 10993 Biocompatible Resin

Uses:

  • payment enabled!
  • NFC/NDEF capabilities
  • Computer login
  • Crytographic security functions
  • Access control
  • Desfire EV3 emulation capable
  • Unlock your Tesla
  • Java applets


Flex Needle

Or

Scalpel


Chip info:

Specs:

  • Subdermal security key
  • Available in several sizes:
  • JCOP 4 / Java Card 3.0.5 Support
  • 83872 Bytes of app EEPROM
  • Setup with mobile apps
  • Plug & play cryptobionic implant
  • USP Class VI, ISO 10993 Biocompatible Resin

Uses:

  • payment enabled!
  • NFC/NDEF capabilities
  • Computer login
  • Crytographic security functions
  • Access control
  • Unlock your Tesla
  • Java applets


8mm x 28mm

3D Model

Flex Needle


Chip info:

Specs:

  • SmartMX3 P71 chip
  • Subdermal security key
  • JCOP 4 / Java Card 3.0.5 Support
  • 167736 Bytes of App EEPROM
  • Factory default master key
  • Developer friendly

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Crytographic security functions
  • Access control
  • Unlock your Tesla
  • Java applets
  • Comes pre-loaded with some common applets
  • Not payment capable


8mm x 22mm x 0.4mm

3D Model

Flex Needle (kinda)


Chip info:

Specs:

  • NTAG216 chip; Datasheet
  • 7 Byte non-changeable UID
  • 888 Bytes of user memory
Cloning

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Access control


10mm x 13.5mm x 0.65mm

3D Model

Scalpel


Chip info:

Specs:

  • Magic Mifare Classic chip; Datasheet
  • 4 Byte changeable UID
  • Available as ZUID or Gen2
  • ZUID version:
    • Supports Gen1a backdoor AND Gen2 direct write simultaneously
    • Need a PM3 to change magic mode
  • ~700 Bytes of user memory

Uses:

  • Clone certain HF credentials
  • Computer login
  • Access control
  • Limited NFC/NDEF capabilities


8mm x 38mm x 0.4mm

3D Model

Flex Needle


Chip info:

Specs:

  • Being replaced by the flexM1 V2, may not restock?
  • Magic Mifare Classic chip; Datasheet
  • 4 Byte changeable UID
  • Available as Gen1a or Gen2
  • ~700 Bytes of user memory

Uses:

  • Clone certain HF credentials
  • Computer login
  • Access control
  • Limited NFC/NDEF capabilities


8mm x 28mm x 0.4mm

3D Model

Flex Needle


Chip info:

Specs:

  • Gen4 GTU Ultimate Magic Chip; More info
  • 4/7/10 Byte changeable UID
  • Advanced magic features
  • Emulate:
    • Mifare Classic
    • Mifare Ultralight
    • NTAG21X

Uses:

  • Clone many HF credentials
  • NFC/NDEF capabilities
  • Computer login
  • Access control


8mm x 25mm x 0.4mm

3D Model

Flex Needle


Chip info:

Specs:

  • HID iClass Picopass chip; Datasheet
  • 8 Byte non-changeable UID
  • Personalization mode allows advanced configuration

Uses:

  • Clone iClass legacy credentials
  • Access control


8mm x 28mm x 0.4mm

3D Model

Flex Needle


Chip info:

Specs:

  • Mifare DESFire EV2 chip; Datasheet
  • 7 Byte non-changeable UID
  • Supports randomized UID
  • 8 Kilobytes of user memory

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Access control


2.1mm x 12mm

3D Model

Injector


Chip info:

Specs:

  • Atmel T5577 chip; Datasheet
  • 64 Bit changeable ID
  • 363 Bit memory
  • 32 Bit chip password

Uses:

  • Clone many LF credentials
  • Access control


2.1mm x 12mm

3D Model

Injector


Chip info:

Specs:

  • HITAG S2048 chip; Datasheet
  • 32 Bit non-changeable ID
  • 2048 Bits of user memory
  • 48 bit secret key based challenge/response authentication

Uses:

  • Access control


18mm x 2.3mm

3D Model

Scalpel


Chip info:

Specs:

  • Atmel T5577 chip; Datasheet
  • 64 Bit changeable ID
  • 363 Bit memory
  • 32 Bit chip password
  • USP Class VI, ISO 10993 Biocompatible Resin

Uses:

  • Clone many LF credentials
  • Access control


20mm x 1.3mm

3D Model

Scalpel


Chip info:

Specs:

  • Being discontinued in favor of the dT5
  • Atmel T5577 chip; Datasheet
  • 64 Bit changeable ID
  • 363 Bit memory
  • 32 Bit chip password

Uses:

  • Clone many LF credentials
  • Access control


3.1mm x 15mm

3D Model

Injector


Chip info:

Specs:

  • HF xSIID + LF xEM in one implant!
  • xSIID
    • NTAG I2C Plus 2K chip; Datasheet
    • 7 Byte non-changeable UID
    • 888 Bytes of NDEF memory
    • 1912 Bytes of user memory (More Info)
    • Available in green, blue, or white!
  • xEM
    • Atmel T5577 chip; Datasheet
    • 64 Bit changeable ID
    • 363 Bit memory
    • 32 Bit chip password

Uses:

  • HF Blinky! :D!
  • Clone many LF credentials
  • NFC/NDEF capabilities
  • Computer login
  • Access control


2.1mm x 15mm

3D Model

Injector


Chip info:

Specs:

  • HF xNT + LF xEM in one implant!
  • xNT
    • NTAG216 chip; Datasheet
    • 7 Byte non-changeable UID
    • 888 Bytes of user memory
  • xEM
    • Atmel T5577 chip; Datasheet
    • 64 Bit changeable ID
    • 363 Bit memory
    • 32 Bit chip password

Uses:

  • Clone many LF credentials
  • NFC/NDEF capabilities
  • Computer login
  • Access control


3mm x 15mm

3D Model

Injector


Chip info:

Specs:

  • HF xM1 + LF xEM in one implant!
  • xM1
    • Magic Mifare Classic chip; Datasheet
    • 4 Byte changeable UID
    • Available as Gen1a or Gen2
    • ~700 Bytes of user memory
  • xEM
    • Atmel T5577 chip; Datasheet
    • 64 Bit changeable ID
    • 363 Bit memory
    • 32 Bit chip password

Uses:

  • Clone many LF credentials
  • Clone certain HF credentials
  • Computer login
  • Access control
  • Limited NFC/NDEF capabilities


24mm x 2.5mm

3D Model

Scalpel


Chip info:

Specs:

  • HF FlexUG4 + LF dT5 in one implant!
  • FlexUG4:
    • Gen4 GTU Ultimate Magic Chip; More info
    • 4/7/10 Byte changeable UID
    • Advanced magic features
    • Emulate:
      • Mifare Classic
      • Mifare Ultralight
      • NTAG21X
  • dT5:
    • Atmel T5577 chip; Datasheet
    • 64 Bit changeable ID
    • 363 Bit memory
    • 32 Bit chip password

Uses:

  • Clone many HF and LF credentials
  • NFC/NDEF capabilities
  • Computer login
  • Access control


40mm x 2.5mm

3D Model

Scalpel


Chip info:

Specs:

  • Optional HF LEDs: Green, Red, Aqua, Blue, and White
  • HF FlexNT + LF dT5 in one implant!
  • FlexNT
    • NTAG216 chip; Datasheet
    • 7 Byte non-changeable UID
    • 888 Bytes of user memory
  • dT5
    • Atmel T5577 chip; Datasheet
    • 64 Bit changeable ID
    • 363 Bit memory
    • 32 Bit chip password

Uses:

  • Blinky Blinky! :D!
  • Clone many LF credentials
  • NFC/NDEF capabilities
  • Computer login
  • Access control


3.1mm x 22mm

3D Model

Injector


Chip info:

Specs:

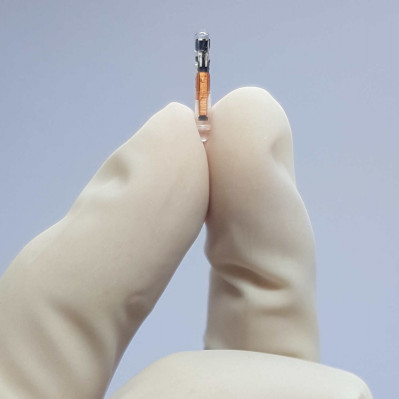

  • VivoKey HF Temp Chip
  • TMP112 Temperature Sensor
  • ISO15693 & NFC Type 5
  • AES-128 Cryptography

Uses:

  • Monitor Temperature
  • VivoKey Verify API


3mm x 13mm

3D Model

Injector


Chip info:

Specs:

  • Still in open beta, not completely released yet
  • Dsruptive HF BioThermo chip (QFN16?)
  • Dsruptive app

Uses:

  • Monitor body temperature
  • NFC/NDEF capabilities


8mm x 32mm x 0.4mm

3D Model

Flex needle


Chip info:

Specs:

  • Please visit the product page for details

Uses:

  • Payment implants are still somewhat special and there are things you should know, please read the product pages for more info


20mm x 16mm x 1.5mm

3D Model

Scalpel


Chip info:

Specs:

  • Please visit the product page for details

Uses:

  • Payment implants are still somewhat special and there are things you should know, please read the product pages for more info


6mm x 26mm x 0.5mm

3D Model

Flex needle


Chip info:

Specs:

  • Please visit the product page for details

Uses:

  • Payment implants are still somewhat special and there are things you should know, please read the product pages for more info


3mm x 15mm

3D Model

Injector


Chip info:

Specs:

  • Injectable biomagnet
  • Axial polarization
  • N52+ strength
  • USP Class VI, ISO 10993 Biocompatible Resin
  • 1300 gauss

Uses:

  • Sensing
  • Limited lifting


3mm x 15mm

3D Model

Injector


Chip info:

Specs:

  • Injectable biomagnet
  • Diametric polarization
  • N52+ strength
  • Schott 8625 Bioglass
  • 2350 gauss

Uses:

  • Lifting
  • Limited sensing


4mm x 28mm

3D Model

Flex needle


Chip info:

Specs:

  • N52 neodymium magnet
  • USP Class VI, ISO 10993 Biocompatible Resin
  • 3x4x28 diametrically polarized core
  • 1900 gauss

Uses:

  • Lifting
  • Limited Sensing


14mm x 4.8mm

3D Model

Scalpel


Chip info:

Specs:

  • N55 neodymium magnet
  • USP Class VI, ISO 10993 Biocompatible Resin
  • 13x3 axially polarized core
  • 3000 gauss
  • Hand drawn smiley face from DT marking the north pole :)

Uses:

  • Lifting
  • Limited Sensing


11mm x 4.8mm

3D Model

Scalpel


Chip info:

Specs:

  • N52 neodymium magnet
  • USP Class VI, ISO 10993 Biocompatible Resin
  • 10x3 axially polarized core
  • 2930 gauss

Uses:

  • Lifting
  • Limited Sensing


8mm

3D Model

Scalpel


Chip info:

Specs:

  • N52 neodymium magnet
  • USP Class VI, ISO 10993 Biocompatible Resin
  • 6mm spherical core
  • 3100 gauss

Uses:

  • Lfiting
  • Limited Sensing

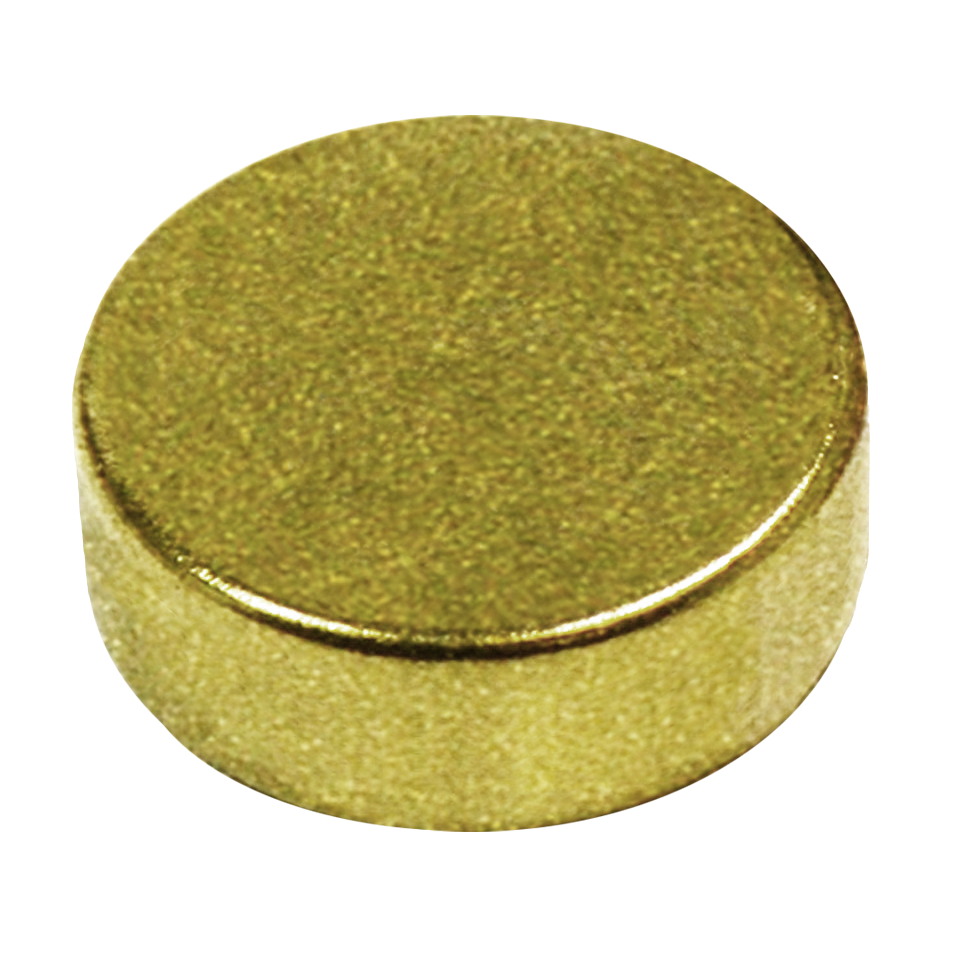

4mm x 2.6mm

3D Model

Scalpel


Chip info:

Specs:

  • N52 neodymium magnet
  • USP Class VI, ISO 10993 Biocompatible Resin
  • 3x2 axially polarized core
  • 2110 gauss

Uses:

  • Sensing
  • Limited lifting

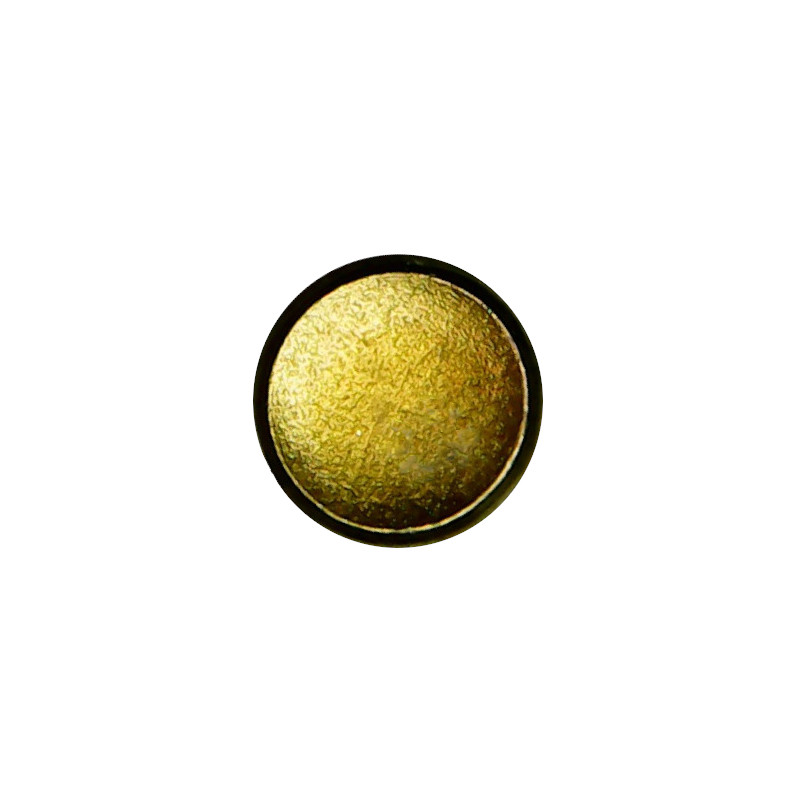

4mm x 2.2mm

3D Model

Scalpel


Chip info:

Specs:

  • N55 neodymium magnet
  • USP Class VI, ISO 10993 Biocompatible Resin
  • TiN coated 3x1 axially polarized core
  • 1600 gauss

Uses:

  • Sensing
  • Limited lifting

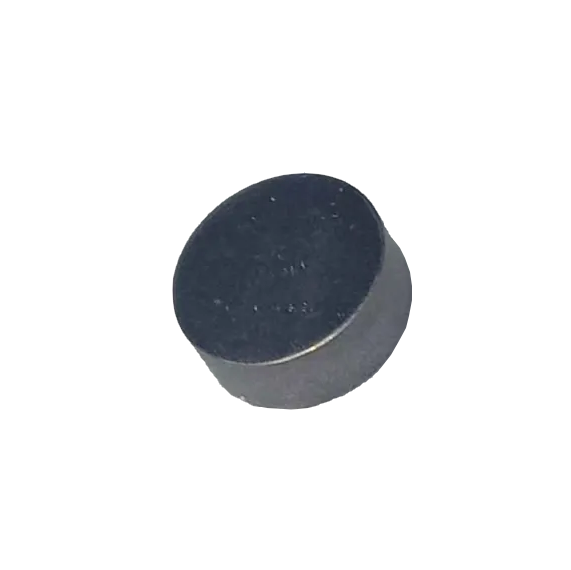

6.8mm x 2.65mm

3D Model

Scalpel


Chip info:

Specs:

  • Axial Sm2Co17 biomagnet
  • Laser welded Grade 4 Titanium coating

Uses:

  • Lifting
  • Limited sensing

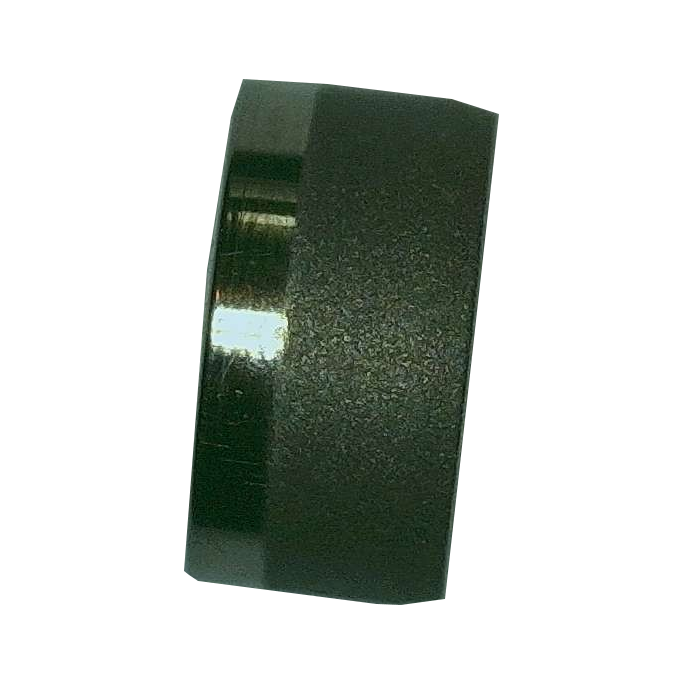

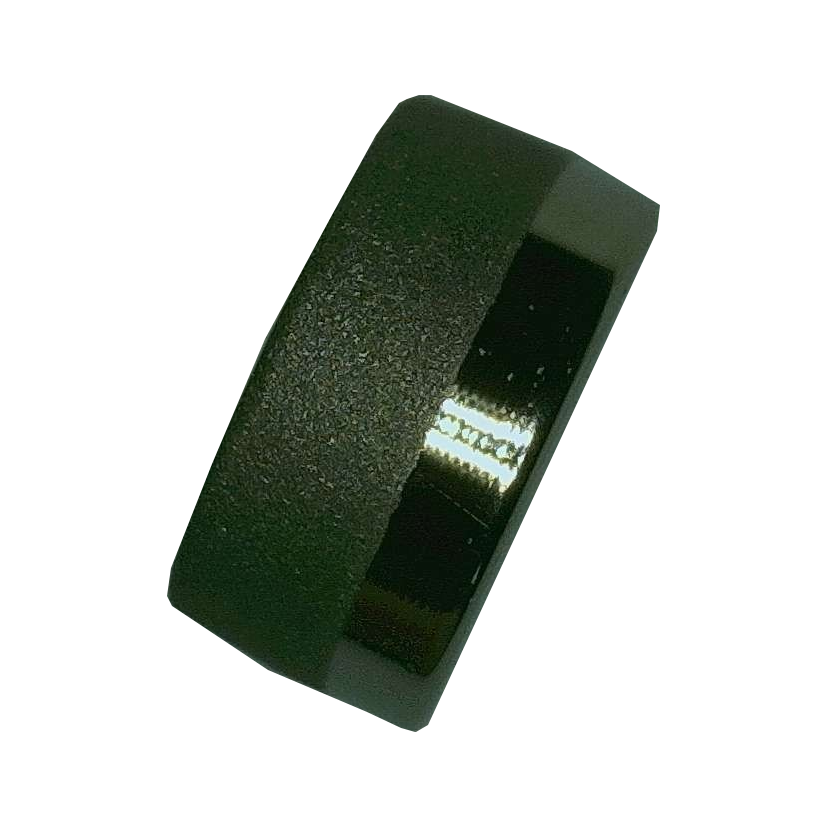

5.8mm x 3mm

3D Model

Scalpel


Chip info:

Specs:

  • Axial Sm2Co17 biomagnet
  • 0.2mm Grade 4 Titanium coating
  • 2710 Gauss ±100

Uses:

  • Lifting
  • Limited sensing

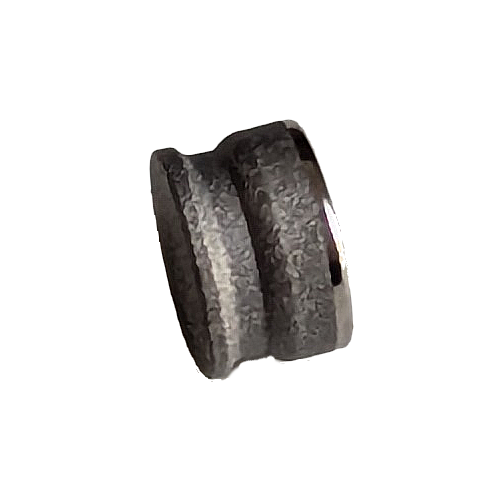

4.8mm x 2.5mm

3D Model

Scalpel


Chip info:

Specs:

  • Axial Sm2Co17 biomagnet
  • 0.2mm Grade 4 Titanium coating
  • Average 2589 Gauss, Median 2592 Gauss
  • Also available Polished

Uses:

  • Sensing
  • Limited lifting


3.8mm x 2.45mm

3D Model

Scalpel


Chip info:

Specs:

  • Axial Sm2Co17 biomagnet
  • 0.2mm Grade 4 Titanium coating
  • 2660 Gauss ±100

Uses:

  • Sensing
  • Limited lifting

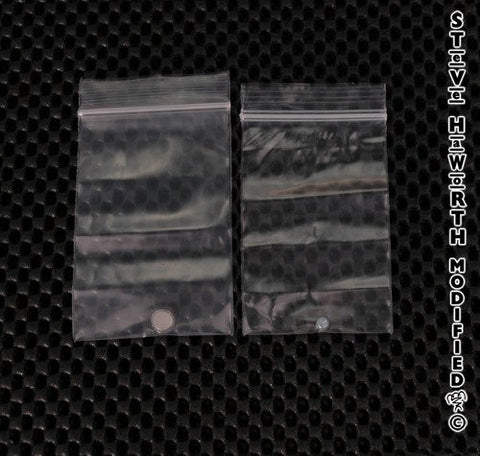

7.62mm x 2.79mm

3D Model

Scalpel


Chip info:

Specs:

  • Lifting biomagnet
  • Silicone coating

Uses:

  • Lifting
  • Magic tricks


2.54mm x 4.19mm

3D Model

Scalpel


Chip info:

Specs:

  • Sensing biomagnet
  • Silicone coating

Uses:

  • Sensing


3mm x 14mm

3D Model

Injector


Chip info:

Specs:

  • No chip, LED only!
  • Available in HF 13.56MHz or LF 125kHz
  • Available in white, red, green, or blue!

Uses:

  • Blinky Blinky! :D!
  • Implant near another implant to add LED functionality


5.7mm x 26.5mm

3D Model

Flex Needle


Chip info:

Specs:

  • No chip, LED only!
  • 125kHz, powered by LF readers or wireless charging coils
  • 4 LEDs the colors of your choosing (red, green, blue, white, amber available)

Uses:

  • Blinky Blinky! :D!


3mm x 15mm

3D Model

Injector


Chip info:

Specs:

  • Available in Green and Aqua
  • Strontium aluminate glow powder with a phosphate conversion coating
  • USP Class VI, ISO 10993 Biocompatible Resin

Uses:

  • Glowy Glowy!! :D


4mm x 28mm

3D Model

Flex Needle


Chip info:

Specs:

  • Available in Green and Aqua
  • Strontium aluminate glow powder with a phosphate conversion coating
  • USP Class VI, ISO 10993 Biocompatible Resin

Uses:

  • Glowy Glowy!! :D


25mm x 25mm x 2mm

3D Model

Scalpel


Chip info:

Specs:

  • Available in Green and Aqua
  • Strontium aluminate glow powder with a phosphate conversion coating
  • USP Class VI, ISO 10993 Biocompatible Resin

Uses:

  • Glowy Glowy!! :D

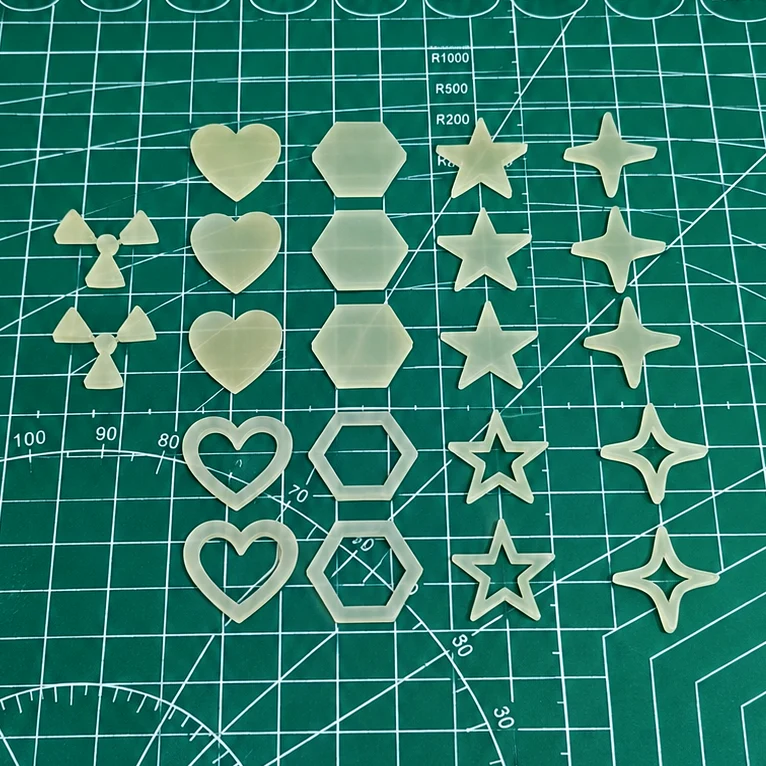

[2.5mm, 5mm, 7.5mm] x [12.5mm, 25mm]

3D Models (soon?)



Scalpel


Chip info:

Specs:

  • Available in various Shapes, Sizes and Thicknesses:
  • Shapes (solid or outline):
    • Heart
    • Hexagon
    • Radiation
    • Stars, 4 and 5 point
  • Thicknesses:
    • 2.5mm
    • 5mm
    • 7.5mm
  • Diameter:
    • 12.5mm
    • 25mm
  • Fusion of green strontium aluminate glow powder suspended in biocompatible elastomer

Uses:

  • Glowy Glowy!! :D

Chip info:

Specs:

  • Ashes of a loved one encapsulated in a resin X-Series implant
  • Green, Aqua, or Blue glow powder may be added, if you wish
  • USP Class VI, ISO 10993 Biocompatible Resin
  • Strontium aluminate glow powder with a phosphate conversion coating

Uses:

  • Commemorate a loved one
  • Optionally add glow

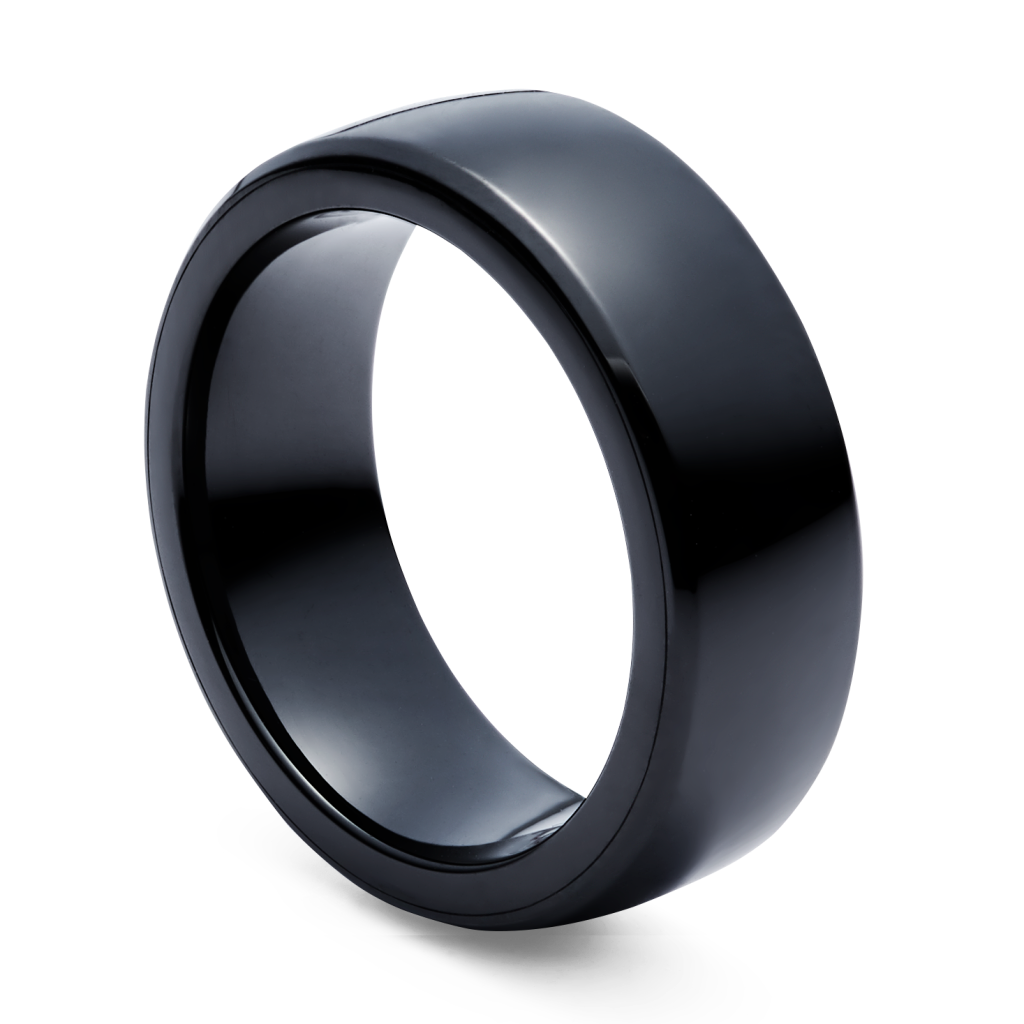

Chip info:

Specs:

  • Based on the VivoKey Apex
  • Wearable security key
  • JCOP 4 / Java Card 3.0.5 Support
  • 83872 Bytes of App EEPROM
  • Setup with mobile apps
  • Plug & play cryptographic wearable

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Crytographic security functions
  • Access control
  • Unlock your Tesla
  • Java applets
  • Payment enabled through Fidesmo Pay

Chip info:

Specs:

  • HF xM1 + LF xEM in one ring!
  • xM1
    • Magic Mifare Classic chip; Datasheet
    • 4 Byte changeable UID
    • Magic Gen1a
    • ~700 Bytes of user memory
  • xEM
    • Atmel T5577 chip; Datasheet
    • 64 Bit changeable ID
    • 363 Bit memory
    • 32 Bit chip password

Uses:

  • Clone many LF credentials
  • Clone certain HF credentials
  • Computer login
  • Access control
  • Limited NFC/NDEF capabilities

Chip info:

Specs:

  • HF xNT + LF xEM in one ring!
  • xNT
    • NTAG216 chip; Datasheet
    • 7 Byte non-changeable UID
    • 888 Bytes of user memory
  • xEM
    • Atmel T5577 chip; Datasheet
    • 64 Bit changeable ID
    • 363 Bit memory
    • 32 Bit chip password

Uses:

  • Clone many LF credentials
  • NFC/NDEF capabilities
  • Computer login
  • Access control

Chip info:

Specs:

  • Dual NTAG203 chips
  • 288 Bytes of combined user memory

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Access control

Chip info:

Specs:

  • Dual NTAG203 chips
  • 288 Bytes of combined user memory

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Access control

Chip info:

Specs:

  • Dual NTAG203 chips
  • 288 Bytes of combined user memory

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Access control

The following products may be discontinued, otherwise unavailable, and/or have other concerns:



2.1mm x 12mm

3D Model

Injector


Chip info:

Specs:

  • Discontinued
  • Apparently still available from Digiwell?
  • A little outdated, check out the xSLX
  • ICODE SLIX chip; Datasheet
  • NFC Type 5 - ISO 15693
  • 8 Byte non-changeable UID
  • 112 Bytes of user memory

Uses:

  • NFC/NDEF capabilities
  • Access control

Chip info:

Specs:

  • Haven't the faintest idea what Cyberise.me's situation is, or how available these are, sorry
  • ICODE SLIX chip; Datasheet
  • NFC Type 5 - ISO 15693
  • 8 Byte non-changeable UID
  • 208 Bytes of user memory

Uses:

  • NFC/NDEF capabilities
  • Access control

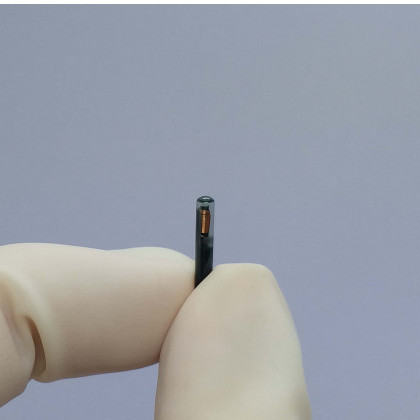

Chip info:

Specs:

  • Haven't the faintest idea what Cyberise.me's situation is, or how available these are, sorry
  • NTAG216 chip; Datasheet
  • 7 Byte non-changeable UID
  • 888 Bytes of user memory

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Access control

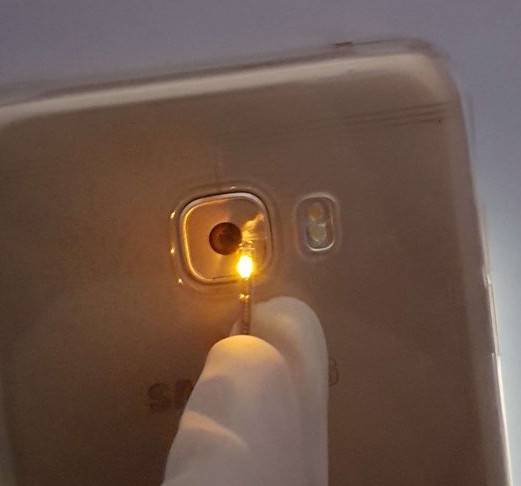

Chip info:

Specs:

  • Haven't the faintest idea what Cyberise.me's situation is, or how available these are, sorry
  • ???

Uses:

  • Blinky! :D
  • NFC/NDEF capabilities ?

Chip info:

Specs:

  • Haven't the faintest idea what Cyberise.me's situation is, or how available these are, sorry
  • Magic Gen1a Mifare Classic chip; Datasheet
  • 4 Byte changeable UID
  • ~700 Bytes of user memory

Uses:

  • Clone certain HF credentials
  • Computer login
  • Access control
  • Limited NFC/NDEF capabilities

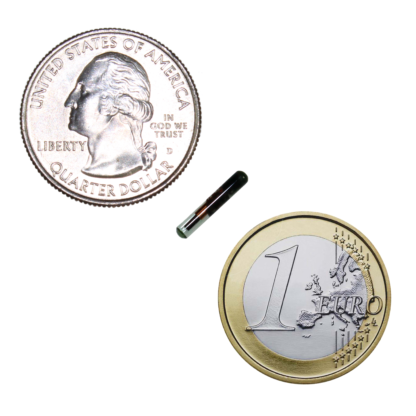

2.1mm x 14mm

3D Model

Injector


Chip info:

Specs:

  • Discontinued
  • Replaced by VivoKey Spark 2
  • NFC Type 5 - ISO 15693 chip
  • Capable of AES128 encryption
  • Setup with mobile app
  • Plug & play cryptobionic implant

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Limited crytographic security functions
  • Access control


24mm x 0.4mm

3D Model

Scalpel


Chip info:

Specs:

  • Never Released, replaced with BioResin alternative
  • A few private batches were produced
  • Large format disc shaped VivoKey Apex
  • Subdermal security key
  • JCOP 4 / Java Card 3.0.5 Support
  • 83872 Bytes of app EEPROM
  • Setup with mobile apps
  • Plug & play cryptobionic implant

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Crytographic security functions
  • Access control
  • Unlock your Tesla
  • Java applets
  • NOT payment enabled!

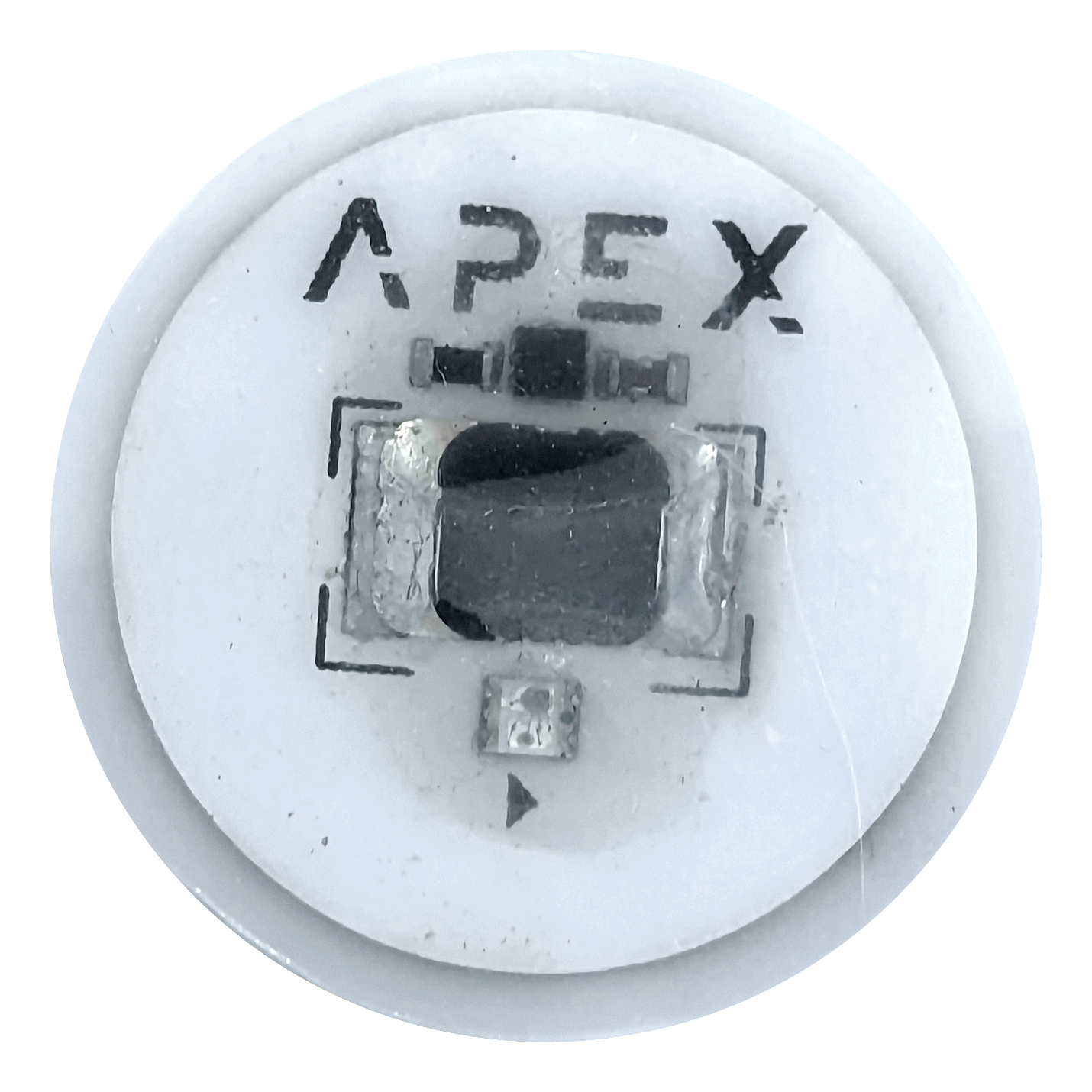

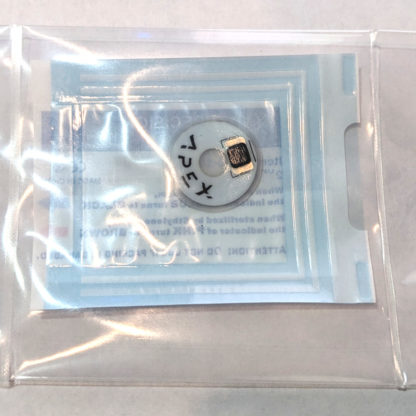

Chip info:

Specs:

  • Never released, replaced with BioResin alternative
  • A few private batches were produced
  • Apex Mega with RGB Blinkies!!! :D!!
  • Subdermal security key
  • JCOP 4 / Java Card 3.0.5 Support
  • 83872 Bytes of app EEPROM
  • Setup with mobile apps
  • Plug & play cryptobionic implant

Uses:

  • Blinky Blinky! :D!
  • NFC/NDEF capabilities
  • Computer login
  • Crytographic security functions
  • Access control
  • Unlock your Tesla
  • Java applets
  • NOT payment enabled!


7mm x 32mm x 0.5mm

3D Model

Flex Needle


Chip info:

Specs:

  • Basically discontinued
  • A little outdated, check out the FlexDF2
  • Mifare DESFire EV1 chip; Datasheet
  • 7 Byte non-changeable UID
  • Supports randomized UID
  • 8 Kilobytes of user memory

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Access control

Chip info:

Specs:

  • Haven't the faintest idea what Cyberise.me's situation is, or how available these are, sorry
  • Atmel T5577 chip; Datasheet
  • 64 Bit changeable ID
  • 363 Bit memory
  • 32 Bit chip password

Uses:

  • Clone many LF credentials
  • Access control

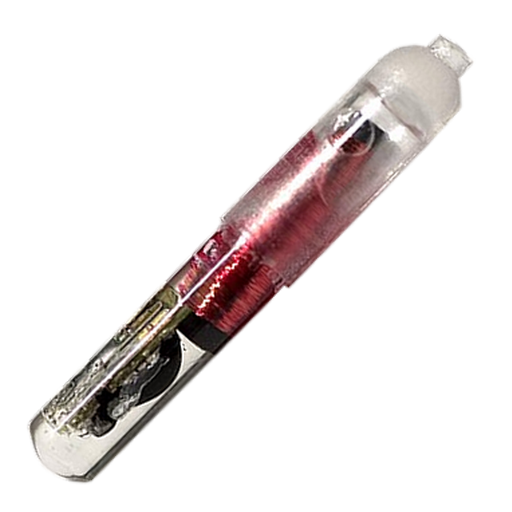

3mm x 9mm

3D Model

Chip info:

Specs:

  • Discontinued
  • LF ID Chip
  • FDA Certified for use in humans

Uses:

  • Used to to identify and link patients to their medical data


41mm x 0.4mm

3D Model

Scalpel


Chip info:

Specs:

  • Discontinued - Replaced by dNExT
  • Version 1 was found to fail relatively quickly.
  • Optional HF LEDs, which were also found to fail too quickly
  • HF FlexNT + LF FlexEM in one implant!
  • FlexNT
    • NTAG216 chip; Datasheet
    • 7 Byte non-changeable UID
    • 888 Bytes of user memory
  • FlexEM
    • Atmel T5577 chip; Datasheet
    • 64 Bit changeable ID
    • 363 Bit memory
    • 32 Bit chip password

Uses:

  • Blinky Blinky! :D!
  • Clone many LF credentials
  • NFC/NDEF capabilities
  • Computer login
  • Access control


33mm x 0.4mm

3D Model

Scalpel


Chip info:

Specs:

  • Discontinued - Check out the dUG4T
  • Optional HF LEDs, which were also found to fail too quickly
  • HF FlexM1 + LF FlexEM in one implant!
  • FlexM1
    • Magic Gen1a Mifare Classic chip; Datasheet
    • 4 Byte changeable UID
    • ~700 Bytes of user memory
  • FlexEM
    • Atmel T5577 chip; Datasheet
    • 64 Bit changeable ID
    • 363 Bit memory
    • 32 Bit chip password

Uses:

  • Blinky Blinky! :D!
  • Clone many LF credentials
  • Clone certain HF credentials
  • Computer login
  • Access control
  • Limited NFC/NDEF capabilities


33mm x 0.4mm

3D Model

Scalpel


Chip info:

Specs:

  • Discontinued - Check out the dUG4T
  • Optional HF LEDs, which were also found to fail too quickly
  • HF Magic NTAG + LF FlexEM in one implant!
  • Magic NTAG
    • Magic NTAG chip
    • Changeable UID
    • True emulation:
      • NTAG 213/215/216
    • Limited emulation:
      • NTAG 210/212
      • NTAG I2C 1K/2K
      • UL_EV1 48/128 bytes
  • FlexEM
    • Atmel T5577 chip; Datasheet
    • 64 Bit changeable ID
    • 363 Bit memory
    • 32 Bit chip password

Uses:

  • Blinky Blinky! :D!
  • Clone many LF credentials
  • Clone certain HF credentials
  • NFC/NDEF capabilities
  • Computer login
  • Access control


2.4mm x 14.5mm

3D Model

Injector


Chip info:

Specs:

  • Basically discontinued - Check out the xThermo
  • 134kHz FDX-B chip; Datasheet
  • BioThermo chip
  • 64 Bit ID

Uses:

  • Monitor Body Temperature
    • 33°C to 43°C
    • 91.4°F to 109.4°F
  • Limited access control

Chip info:

Specs:

  • Haven't the faintest idea what Cyberise.me's situation is, or how available these are, sorry
  • 134kHz FDX-B chip; Datasheet
  • BioThermo chip
  • 64 Bit ID

Uses:

  • Monitor Body Temperature
    • 33°C to 43°C
    • 91.4°F to 109.4°F
  • Limited access control


3mm x 15mm

3D Model

Injector


Chip info:

Specs:

  • Discontinued, replaced with the resin version due to a few breakages
  • Injectable biomagnet
  • Axial polarization
  • N52+ strength
  • Schott 8625 Bioglass
  • 1322 gauss

Uses:

  • Sensing
  • Limited lifting


2.8mm x 4.5mm

3D Model

Scalpel


Chip info:

Specs:

  • Temporarily discontinued to work out supply-chain issues and hopefully lower the price
  • N52 grade neodymium iron boron biomagnet
  • Grade 2 pure titanium medical casing
  • 2900 gauss

Uses:

  • Sensing
  • Limited lifting


4mm x 9mm

3D Model

Scalpel


Chip info:

Specs:

  • Discontinued for not being cool enough; m0490d TBA
  • N52 neodymium magnet
  • USP Class VI, ISO 10993 Biocompatible Resin
  • 3x6 axially polarized core
  • 1462 gauss

Uses:

  • Lifting
  • Limited sensing


3mm x 1mm

3D Model

Scalpel


Chip info:

Specs:

  • Discontinued
  • Neodymium sensing biomagnet
  • Titanium nitride coating
  • N52+ strength
  • 2870 gauss

Uses:

  • Sensing


3mm x 6mm

3D Model

Scalpel


Chip info:

Specs:

  • Discontinued
  • Neodymium lifting biomagnet
  • Titanium nitride coating
  • N52+ strength

Uses:

  • Lifting

Chip info:

Specs:

  • Haven't the faintest idea what Cyberise.me's situation is, or how available these are, sorry
  • Cylindrical biomagnet for sensing
  • PMMA coating

Uses:

  • Sensing


3mm x 13mm

3D Model

Injector


Chip info:

Specs:

  • Discontinued
  • Potentially serious health hazards
  • X-Series glowing tritium implant
  • Radioactive tritium gas

Uses:

  • Cool glowy!

Chip info:

Specs:

  • Haven't the faintest idea what Cyberise.me's situation is, or how available these are, sorry
  • Potentially serious health hazards
  • Injectable glowing tritium implant
  • Radioactive tritium gas

Uses:

  • Cool glowy!

Chip info:

Specs:

  • Never really released
  • Check out the Cybernetic Encrypter in the meantime
  • Based on the VivoKey Apex
  • Wearable security key
  • JCOP 4 / Java Card 3.0.5 Support
  • 83872 Bytes of App EEPROM
  • Setup with mobile apps
  • Plug & play cryptographic wearable

Uses:

  • NFC/NDEF capabilities
  • Computer login
  • Crytographic security functions
  • Access control
  • Unlock your Tesla
  • Java applets
  • Payment enabled through Fidesmo Pay

Chip info:

Specs:

  • Discontinued
  • Replaced by Magic Ring V2
  • HF xM1 + LF xEM in one ring!
  • xM1
    • Magic Mifare Classic chip; Datasheet
    • 4 Byte changeable UID
    • Magic Gen2
    • ~700 Bytes of user memory
  • xEM
    • Atmel T5577 chip; Datasheet
    • 64 Bit changeable ID
    • 363 Bit memory
    • 32 Bit chip password

Uses:

  • Clone many LF credentials
  • Clone certain HF credentials
  • Computer login
  • Access control
  • Limited NFC/NDEF capabilities


Flex Needle


Chip info:

Specs:

  • Custom conversion work, may be available by request
  • Convert your Tesla Model 3 key card into an implant

Uses:

  • A bit outdated, maybe look at the VivoKey Apex. Though, they'll probably still do the conversion if you ask nicely

Chip info:

Specs:

  • Custom conversion work, may be available by request
  • Convert your MagicBand Puck into an implant

Uses:

  • Whatever you can use a MagicBand puck for, I'm not sure, sorry. Ride access maybe? See the link for more info :)

Chip info:

Specs:

  • Custom conversion work, may be available by request

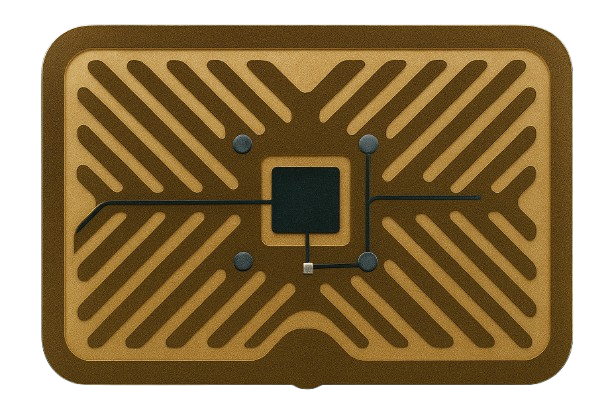

  • Convert your Payment Device into an implant

Uses:

  • Paying for things!

Chip info:

Specs:

  • Custom conversion work, may be available by request
  • Whatever your mind and/or your wallet can imagine! (Provided Amal is willing...)

Uses:

  • All the things!

Brought to you by Aoxhwjfoavdlhsvfpzha
