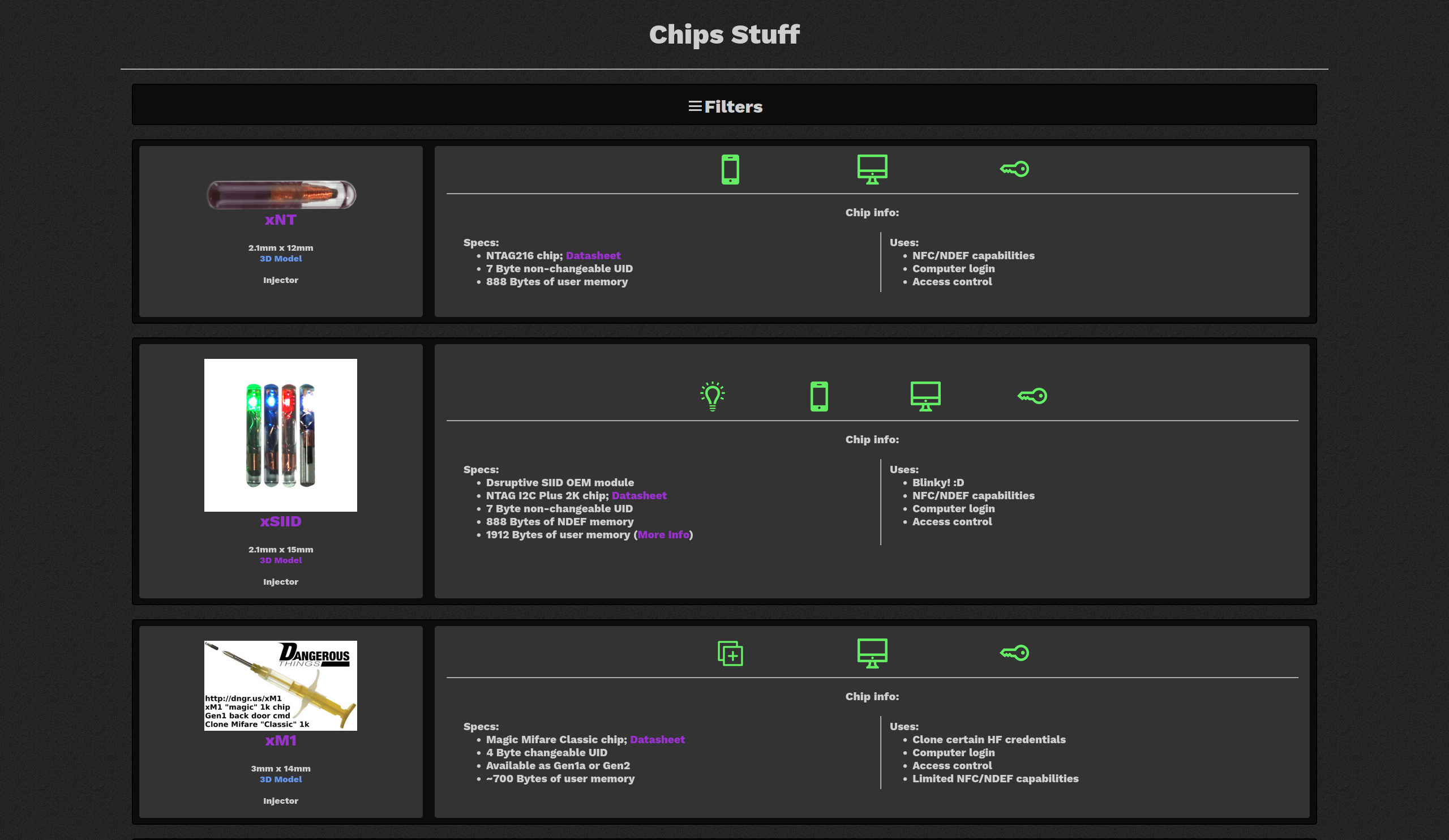

Chips Stuff:

≡ Filters

Product

Specs

Uses

xNT

2.1mm x 12mm

Injector

  • NTAG216 Chip
  • ISO14443A
  • NFC Type 2
  • 56 Bit ID
  • 888 Bytes Memory
  • 32 Bit Chip Password
  • Access Control
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Computer Login

xSIID

2.1mm x 15mm

Injector

  • In the process of being replaced by the NExT v2. May not restock?
  • Dsruptive SIID OEM Module
  • NTAG I2C 2K Chip
  • ISO14443A
  • NFC Type 2
  • 56 Bit ID
  • 1kB (888 bytes) NDEF Memory
  • 1912 bytes of user read/write memory (More Info)
  • 32 Bit Chip Password
  • Red, White, Blue, or Green LEDs!
  • Access Control
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Computer Login
  • Blinky! :D

xM1

3mm x 14mm

Injector

  • Magic Mifare Classic 1K Emulator Gen1a
  • Limited runs of Gen2 chips may be available on occasion
  • 4 Byte Changeable ID
  • Writable Sector 0
  • Clone + Emulate IDs
  • Access Control
  • Computer Login

xSLX

2.1mm x 12mm

Injector

  • NXP ICODE SLIX2 Chip
  • ISO15693
  • NFC Type 5
  • Access Control
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks

xDF3

3mm x 13mm

Injector

  • DESFire EV2 Chip
  • NFC Type 4
  • 56 Bit ID
  • Private ID Mode
  • 8kB User Bytes
  • Data authenticity by 8 byte CMAC
  • Multiple Keys
  • DES
  • AES
  • Multi-AID
  • Encrypted Channel
  • Access Control
  • Enterprise
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Stored Value
  • Developer Friendly
  • Computer Login

xDF2

3mm x 13mm

Injector

  • DESFire EV2 Chip
  • NFC Type 4
  • 56 Bit ID
  • Private ID Mode
  • 8kB User Bytes
  • Multiple Keys
  • DES
  • AES
  • Multi-AID
  • Encrypted Channel
  • Access Control
  • Enterprise
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Stored Value
  • Developer Friendly
  • Computer Login

VivoKey Spark 2

2.1mm x 14mm

Injector

  • ISO14443A
  • NFC Type 4
  • AES128
  • Mobile App
  • Plug & Play
  • Access Control
  • Computer Login
  • Website Login
  • Secure ID
  • Share Data
  • VivokKey Community
  • Web APIs
  • Open Source
  • Launch URL

VivoKey Apex Flex

8mm x 28mm

Flex Needle

  • Enhanced Range
  • Subdermal Security Key
  • JCOP 4 / Java Card 3.0.5 Support
  • 83872 Bytes of App EEPROM
  • CC EAL 6+
  • User Friendly
  • Access Control
  • Computer Login
  • Website Login
  • Secure ID
  • Share Data
  • VivokKey Community
  • Web APIs
  • Java Applets
  • Open Source
  • Launch URL
  • NOT PAYMENT ENABLED

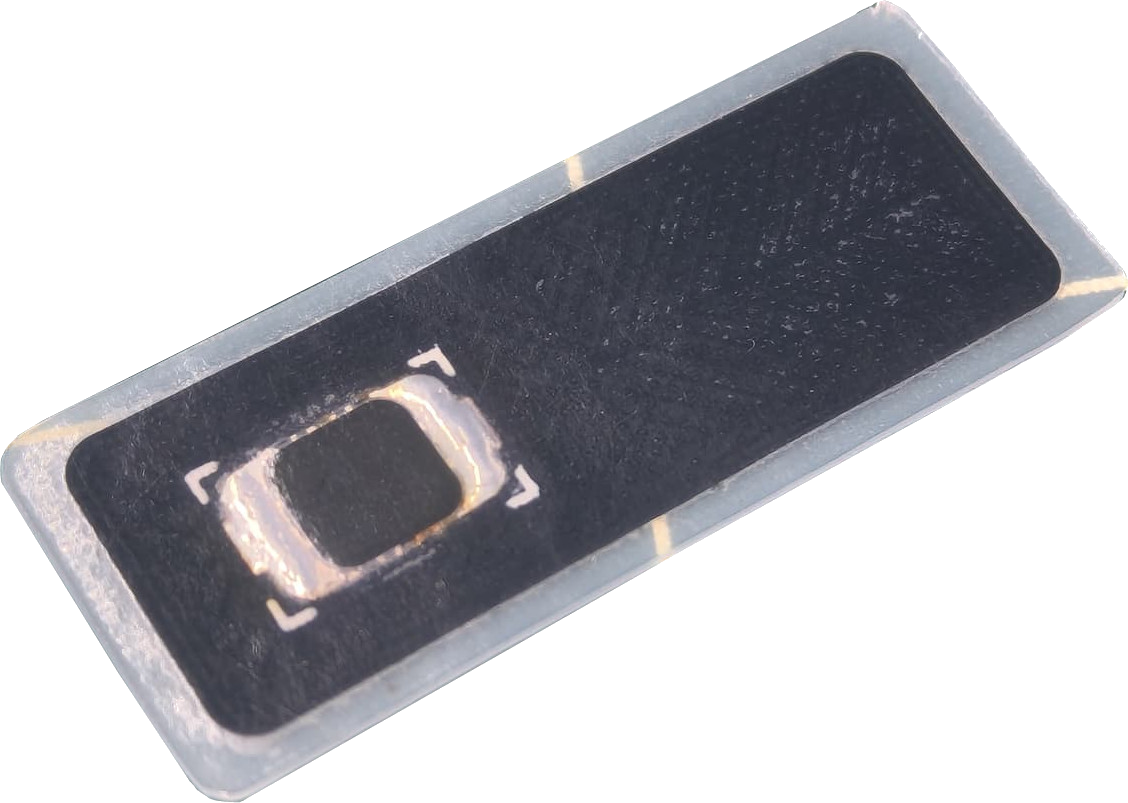

VivoKey Apex Module

14mm x 35mm

Scalpel

  • Extra Enhanced Range
  • Subdermal Security Key
  • JCOP 4 / Java Card 3.0.5 Support
  • 83872 Bytes of App EEPROM
  • CC EAL 6+
  • User Friendly
  • Access Control
  • Computer Login
  • Website Login
  • Secure ID
  • Share Data
  • VivokKey Community
  • Web APIs
  • Java Applets
  • Open Source
  • Launch URL
  • NOT PAYMENT ENABLED

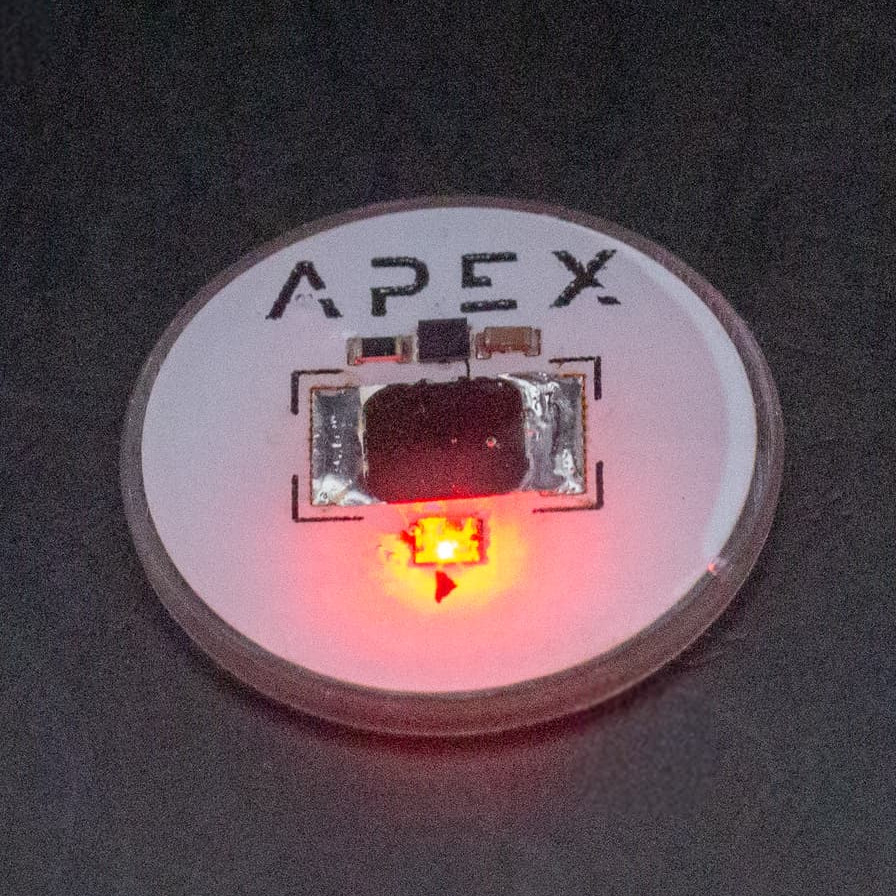

VivoKey Apex Spectrum

22mm x 1.9mm

Scalpel

  • Enhanced Range
  • RGB blinky!! :D!!!
  • Available with fast or slow fashing LEDs
  • Subdermal Security Key
  • JCOP 4 / Java Card 3.0.5 Support
  • 83872 Bytes of App EEPROM
  • CC EAL 6+
  • User Friendly
  • USP Class VI, ISO 10993 Biocompatible Resin
  • Access Control
  • Computer Login
  • Website Login
  • Secure ID
  • Share Data
  • VivokKey Community
  • Web APIs
  • Java Applets
  • Open Source
  • Launch URL
  • NOT PAYMENT ENABLED

flexSecure

7.5mm x 28mm

Flex Needle

  • Enhanced Range
  • Subdermal Security Key
  • JCOP 4 / Java Card 3.0.5 Support
  • 167736 Bytes of App EEPROM
  • CC EAL 6+
  • Factory Default Master Key
  • Ready for Developers
  • Access Control
  • Computer Login
  • Website Login
  • Secure ID
  • Share Data
  • Web APIs
  • Java Applets
  • Open Source
  • Launch URL

flexNT

8mm x 22mm x 0.4mm

Flex Needle

  • Enhanced Range
  • NTAG216 Chip
  • ISO14443A
  • NFC Type 2
  • 56 Bit ID
  • 888 Bytes Memory
  • 32 Bit Chip Password
  • Access Control
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Computer Login

flexM1 v2

10.25mm x 13.5mm x 0.65mm

Scalpel

  • Enhanced Range
  • Magic Mifare Classic 1K Emulator ZUID; Gen1a AND Gen2 in one chip!
  • Configurable as Gen1a or Gen2, or enable both at the same time!
  • Also available as a regular Gen2
  • 4 Byte Changeable ID
  • Writable Sector 0
  • Clone + Emulate IDs
  • Access Control
  • Computer Login

flexM1

8mm x 38mm x 0.4mm

Flex Needle

  • Being replaced by the flexM1v2, may not restock?
  • Enhanced Range
  • Magic Mifare Classic 1K Emulator Gen1a or Gen2
  • 4 Byte Changeable ID
  • Writable Sector 0
  • Available in Gen1a or Gen2
  • Clone + Emulate IDs
  • Access Control
  • Computer Login

flexUG4

8mm x 28mm x 0.4mm

Flex Needle

  • Enhanced Range
  • Ultimate Magic gen4 chip emulator
  • Changeable UID
  • Writable Sector 0
  • Emulate several types of Mifare and NTAG chips
  • Clone + Emulate IDs
  • Access Control
  • Computer Login
  • NFC Data Sharing

flexClass

8mm x 25mm x 0.4mm

Flex Needle

  • Enhanced Range
  • HID iClass Chip
  • Personalization Mode Allowing Cloning
  • Clone + Emulate IDs
  • Access Control

flexDF2

8mm x 28mm x 0.4mm

Flex Needle

  • Enhanced Range
  • DESFire EV2 Chip
  • NFC Type 4
  • 56 Bit ID
  • Private ID Mode
  • 8kB User Bytes
  • DES
  • AES
  • Multi-AID
  • Encrypted Channel
  • Rolling Keys
  • Sub-Key Management
  • Proximity Check
  • Access Control
  • Enterprise
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Stored Value
  • Developer Friendly
  • Computer Login

xEM

2.1mm x 12mm

Injector

  • T5577 Chip
  • 125kHz RFID
  • 64 Bit Changeable ID
  • 363 Bit Memory
  • 32 Bit Chip Password
  • Clone + Emulate IDs
  • Access Control

xHT

2.1mm x 12mm

Injector

  • HITAG S2048 Chip
  • 125kHz RFID
  • ISO 11784/85
  • Animal ID
  • ISO 18000-2 AIDC
  • 48 Bit Secret Key Challenge/Response
  • Access Control

dT5

18mm Diameter x 2.3mm Thick

Scalpel

  • Enhanced Range
  • T5577 Chip
  • 125kHz RFID
  • 64 Bit Changeable ID
  • 363 Bit Memory
  • 32 Bit Chip Password
  • USP Class VI, ISO 10993 Biocompatible Resin
  • Clone + Emulate IDs
  • Access Control

flexEM

20mm Diameter x 1.3mm Thick

Scalpel

  • Being discontinued in favor of the dT5
  • Enhanced Range
  • T5577 Chip
  • 125kHz RFID
  • 64 Bit Changeable ID
  • 363 Bit Memory
  • 32 Bit Chip Password
  • Clone + Emulate IDs
  • Access Control

NExT v2

3.1mm x 14mm

Injector

  • Dual Chips
  • xEM + xSIID
  • 32 Bit Chip Password
  • T5577 Chip
  • 125kHz RFID
  • 64 Bit Changeable ID
  • 363 Bit Memory
  • NTAG I2C 2K Chip
  • ISO14443A
  • NFC Type 2
  • 56 Bit ID
  • 1kB (888 bytes) NDEF Memory
  • 1912 bytes of user read/write memory (More Info)
  • 32 Bit Chip Password
  • White, Blue, or Green LEDs!
  • Clone + Emulate IDs
  • Access Control
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Computer Login
  • HF Blinky! :D!

NExT

2.1mm x 14mm

Injector

  • Dual Chips
  • xEM + xNT
  • 32 Bit Chip Password
  • T5577 Chip
  • 125kHz RFID
  • 64 Bit Changeable ID
  • 363 Bit Memory
  • NTAG216 Chip
  • ISO4443A
  • NFC Type 2
  • 56 Bit ID
  • 888 Bytes Memory
  • Clone + Emulate IDs
  • Access Control
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Computer Login

xMagic

3mm x 15mm

Injector

  • Dual Chips
  • xEM + xM1
  • Magic Mifare Classic 1K Emulator
  • Available as Gen1a or Gen2
  • 4 Byte Changeable ID
  • Writable Sector 0
  • T5577 Chip
  • 32 Bit Chip Password
  • 125kHz RFID
  • 64 Bit Changeable ID
  • 363 Bit Memory
  • Clone + Emulate IDs
  • Access Control
  • Computer Login

dUG4T

24mm Diameter x 2.5mm Thick

Salpel

  • Enhanced Range
  • dT5 + flexUG4
  • Ultimate Magic gen4 chip emulator
  • Changeable UID
  • Writable Sector 0
  • Emulate several types of Mifare and NTAG chips
  • T5577 Chip
  • 32 Bit Chip Password
  • 125kHz RFID
  • 64 Bit Changeable ID
  • 363 Bit Memory
  • USP Class VI, ISO 10993 Biocompatible Resin
  • Clone + Emulate IDs
  • Access Control
  • Computer Login
  • NFC Data Sharing

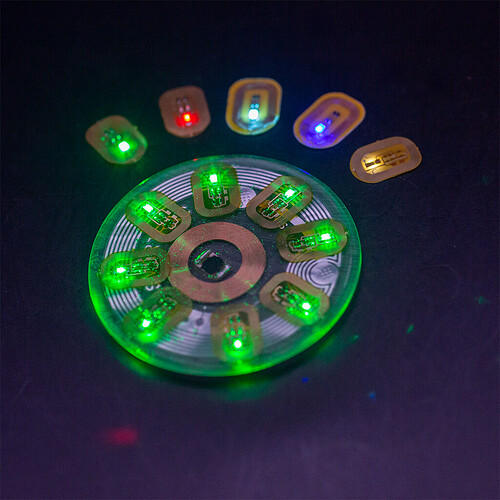

dNExT

40mm Diameter x 2.5mm Thick

Scalpel

  • Enhanced Range
  • Optional LEDs: Green, Red, Aqua, Blue, and White
  • Dual Chips
  • flexEM + flexNT
  • 32 Bit Chip Password
  • T5577 Chip
  • 125kHz RFID
  • 64 Bit Changeable ID
  • 363 Bit Memory
  • NTAG216 Chip
  • ISO4443A
  • NFC Type 2
  • 56 Bit ID
  • 888 Bytes Memory
  • USP Class VI, ISO 10993 Biocompatible Resin
  • Clone + Emulate IDs
  • Access Control
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Computer Login

VivoKey Thermo

3.1mm x 22mm

Injector

  • VivoKey HF Temp Chip
  • TMP112 Temperature Sensor
  • ISO15693 & NFC Type 5
  • AES-128 Cryptography
  • Monitor Temperature
  • VivoKey Verify API

Dsruptive BeUno

Injector

  • Still in open beta, not completely released yet
  • Dsruptive HF Temp Chip
  • BioThermo Chip
  • Dsruptive App
  • Monitor Temperature
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks

Walletmor

Flex Needle

  • Please Visit The Product Pages For Details.
  • Payment Implants are still new-ish and there are things you should know, please read the product pages for more info

xG3 v1r

3mm x 15mm

Injector

  • Axial Inectable Biomagnet
  • N52+ Strength
  • USP Class VI, ISO 10993 Biocompatible Resin
  • 1300 gauss
  • Sensing
  • Limited lifting

xG3 v2

3mm x 15mm

Injector

  • Diametric Injectable Biomagnet
  • N52+ Strength
  • Schott 8625 Bioglass
  • 2350 gauss
  • Lifting
  • Limited sensing

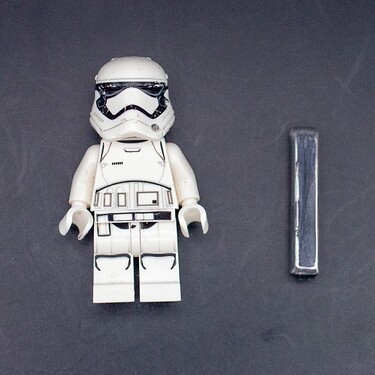

m04280bar

4mm x 28mm

Flex Needle

  • N52 neodymium magnet
  • USP Class VI, ISO 10993 Biocompatible Resin
  • 3x4x28 diametrically polarized core
  • 1900 gauss
  • Lifting
  • Limited sensing

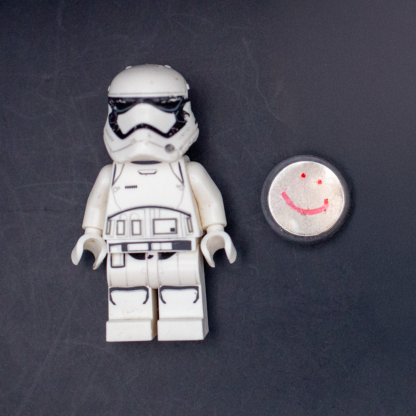

m1448a

14mm x 4.8mm

Scalpel

  • N55 neodymium magnet
  • USP Class VI, ISO 10993 Biocompatible Resin
  • 13x3 axially polarized core core
  • 3000 gauss
  • Hand drawn smiley face from DT marking the north pole :)
  • Lifting
  • Limited sensing

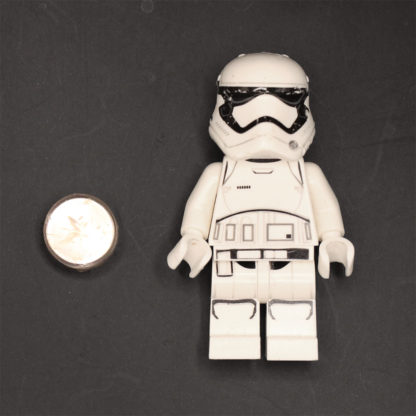

m1148a

11mm x 4.8mm

Scalpel

  • N52 neodymium magnet
  • USP Class VI, ISO 10993 Biocompatible Resin
  • 10x3 axially polarized core core
  • 2930 gauss
  • Lifting
  • Limited sensing

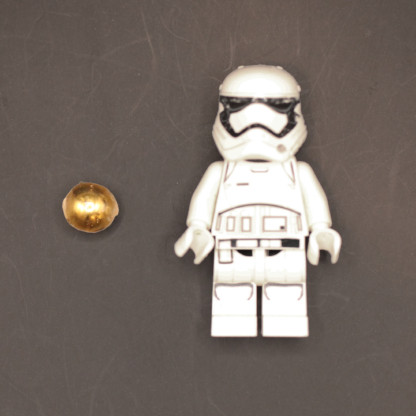

m08s

8mm

Scalpel

  • N52 neodymium magnet
  • USP Class VI, ISO 10993 Biocompatible Resin
  • 6mm spherical core
  • 3100 gauss
  • Lifting
  • Limited sensing

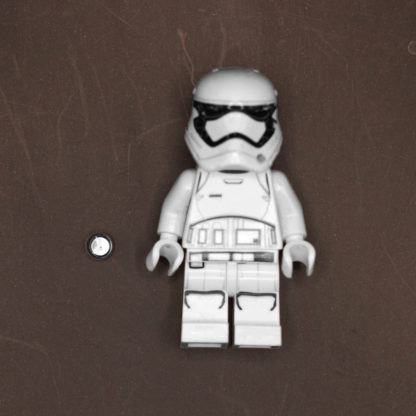

m0426a

4mm x 2.6mm

Scalpel

  • N52 neodymium magnet
  • USP Class VI, ISO 10993 Biocompatible Resin
  • 3x2 axially polarized core
  • 2110 gauss
  • Sensing
  • Limited lifting

m0422a

4mm x 2.2mm

Scalpel

  • N55 neodymium magnet
  • USP Class VI, ISO 10993 Biocompatible Resin
  • TiN coated 3x1 axially polarized core
  • 1600 gauss
  • Sensing
  • Limited lifting

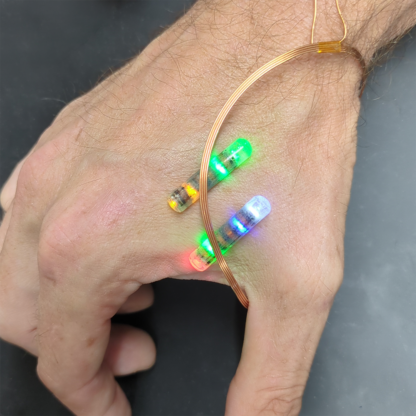

xLED

3mm x 14mm

Injector

  • NO CHIP, LED ONLY
  • Available in HF or LF (13.56 MHz or 125kHz)
  • Available in White or Red LED Colors!
  • Blinky Blinky!! :D
  • May be implanted near another chip to add LED functionality

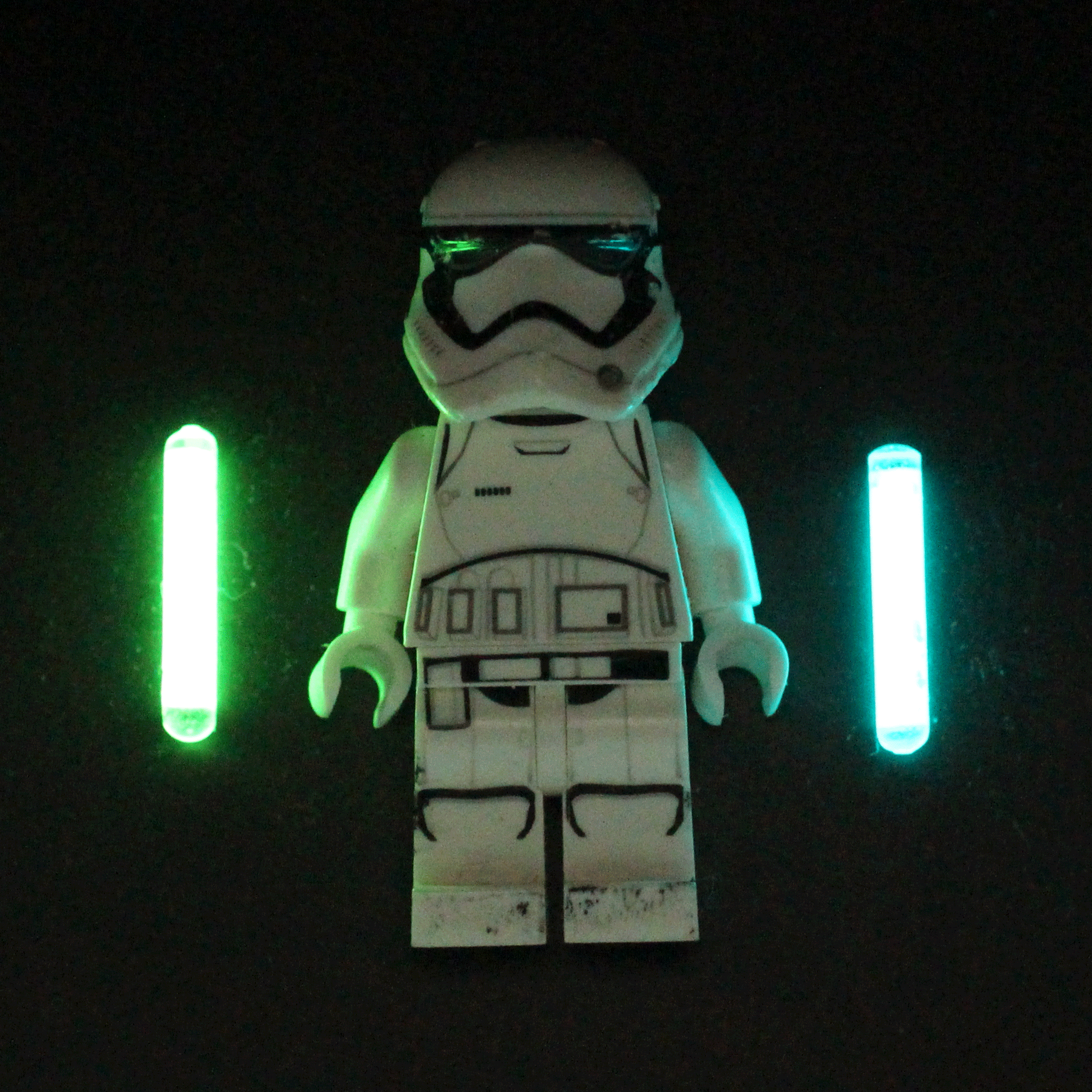

xGlow

3mm x 15mm

Injector

  • Available in Green and Aqua
  • Strontium aluminate glow powder with a phosphate conversion coating
  • USP Class VI, ISO 10993 Biocompatible Resin
  • Glowy Glowy!! :D

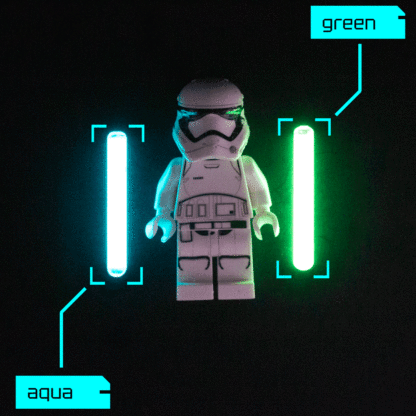

xGlow XL

4mm x 28mm

Flex Needle

  • Available in Green and Aqua
  • Strontium aluminate glow powder with a phosphate conversion coating
  • USP Class VI, ISO 10993 Biocompatible Resin
  • Glowy Glowy!! :D

Glow Heart

25mm x 25mm x 2mm

Scalpel

  • Available in Green and Aqua
  • Strontium aluminate glow powder with a phosphate conversion coating
  • USP Class VI, ISO 10993 Biocompatible Resin
  • Glowy Glowy!! :D

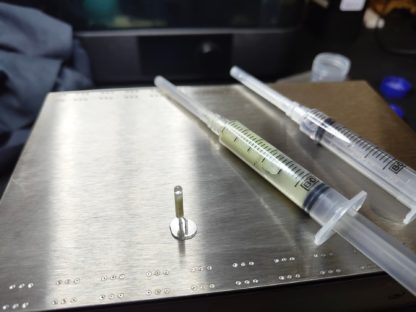

Memora Implant

Injector

  • Ashes of a loved one encapsulated in a resin X-Series implant
  • Green, Aqua, or Blue glow powder may be added, if you wish
  • USP Class VI, ISO 10993 Biocompatible Resin
  • Strontium aluminate glow powder with a phosphate conversion coating
  • Commemorate a loved one
  • Optionally add glow

Magic Ring v2
  • Wearable
  • Dual Chips
  • xEM + xM1
  • Enhanced Range
  • Magic Mifare Classic 1K Emulator Gen1a
  • 4 Byte Changeable ID
  • Writable Sector 0
  • T5577 Chip
  • 32 Bit Chip Password
  • 125kHz RFID
  • 64 Bit Changeable ID
  • 363 Bit Memory
  • Clone + Emulate IDs
  • Access Control
  • Computer Login

Dual Frequency Ring
  • Wearable
  • Dual Chips
  • xEM + xNT
  • 32 Bit Chip Password
  • T5577 Chip
  • 125kHz RFID
  • 64 Bit Changeable ID
  • 363 Bit Memory
  • NTAG216 Chip
  • ISO4443A
  • NFC Type 2
  • 56 Bit ID
  • 888 Bytes Memory
  • Clone + Emulate IDs
  • Access Control
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Computer Login

V1ntage Ring
  • Wearable
  • Dual NTAG203 Chips
  • 288 Bytes Combined Storage
  • ISO14443A
  • NFC Type 2
  • 56 Bit IDs
  • Access Control
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Computer Login

Alpha Signature Ring
  • Wearable
  • Dual NTAG203 Chips
  • 288 Bytes Combined Storage
  • ISO14443A
  • NFC Type 2
  • 56 Bit IDs
  • Access Control
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Computer Login

Signature Ring
  • Wearable
  • Dual NTAG203 Chips
  • 288 Bytes Combined Storage
  • ISO14443A
  • NFC Type 2
  • 56 Bit IDs
  • Access Control
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Computer Login

The following products may be discontinued, otherwise unavailable, and/or have other concerns:

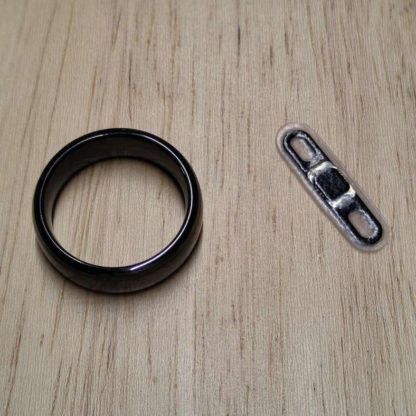

Vivokey Apex Ring
  • Not yet released - Specs and uses may change!
  • Pre-order closed awaiting release
  • Durable zirconia ceramic construction
  • Wearable Security Key
  • JCOP 4 / Java Card 3.0.5 Support
  • 83872 Bytes of App EEPROM
  • CC EAL 6+
  • User Friendly
  • Payment Capable
  • Access Control
  • Computer Login
  • Website Login
  • Secure ID
  • Share Data
  • VivokKey Community
  • Web APIs
  • Java Applets
  • Open Source
  • Launch URL
  • Link your credit cards, tap to pay

xG3 v1

3mm x 15mm

Injector

  • Axial Inectable Biomagnet
  • N52+ Strength
  • Schott 8625 Bioglass
  • 1322 gauss
  • Sensing
  • Limited Lifting

Titan

2.8mm x 4.5mm

Scalpel

  • Temporarily Discontinued to work out supply-chain issues and hopefully lower the price
  • N52 Grade Neodymium Iron Boron Magnet
  • Grade 2 Pure Titanium Medical Casing
  • 2900 gauss
  • Sensing
  • Limited Lifting

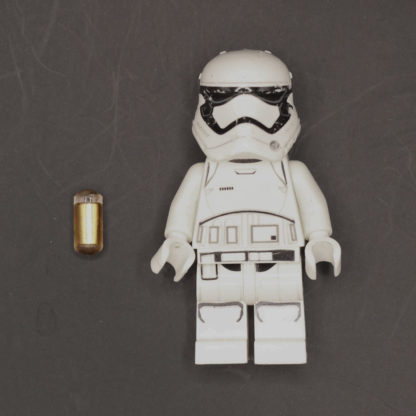

m0490a

4mm x 9mm

Scalpel

  • Discontinued for not being cool enough; m0490d TBA
  • N52 neodymium magnet
  • USP Class VI, ISO 10993 Biocompatible Resin
  • 3x6 axially polarized core
  • 1462 gauss
  • Lifting
  • Limited sensing

xBT

2.4mm x 14.5mm

Injector

  • Discontinued
  • Limited quantity runs may be available occasionally, but they are not regularly stocked right now
  • 134kHz FDX-B
  • BioThermo Chip
  • 64 Bit ID
  • Limited Access Control
  • Animal ID
  • Monitor Temperature
  • 33°C to 43°C
  • 91.4°F to 109.4°F

FlexNExT

41mm Diameter x 0.4mm Thick

Scalpel

  • Discontinued
  • Version 1 was found to fail relatively quickly. Version 2 has not been released yet.
  • Enhanced Range
  • Optional LEDs, which were also found to fail quickly
  • Dual Chips
  • flexEM + flexNT
  • 32 Bit Chip Password
  • T5577 Chip
  • 125kHz RFID
  • 64 Bit Changeable ID
  • 363 Bit Memory
  • NTAG216 Chip
  • ISO4443A
  • NFC Type 2
  • 56 Bit ID
  • 888 Bytes Memory
  • Clone + Emulate IDs
  • Access Control
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Computer Login

flexMT

33mm Diameter x 0.4mm Thick

Scalpel

  • Discontinued while the larger flex format is being reworked
  • Enhanced Range
  • Dual Chips
  • flexEM + flexM1
  • Magic Mifare Classic 1K Emulator Gen1a
  • 4 Byte Changeable ID
  • Writable Sector 0
  • T5577 Chip
  • 32 Bit Chip Password
  • 125kHz RFID
  • 64 Bit Changeable ID
  • 363 Bit Memory
  • Clone + Emulate IDs
  • Access Control
  • Computer Login

flexMN

33mm Diameter x 0.4mm Thick

Scalpel

  • Discontinued
  • The Magic NTAG chips were found to be unreliable and fail. Might come back if a better source is found?
  • Enhanced Range
  • Dual Chips
  • flexEM + Magic NTAG
  • 7 Byte Changeable ID
  • ISO14443A
  • T5577 Chip
  • 32 Bit Chip Password
  • 125kHz RFID
  • 64 Bit Changeable ID
  • 363 Bit Memory
  • Emulate Multiple Ultralight and NTAG Chips!
  • Clone + Emulate IDs
  • Access Control
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Computer Login

Magic Ring
  • Discontinued
  • Replaced by the Magic Ring v2
  • Wearable
  • Dual Chips
  • xEM + xM1
  • Magic Mifare Classic 1K Emulator Gen2
  • 4 Byte Changeable ID
  • Writable Sector 0
  • T5577 Chip
  • 32 Bit Chip Password
  • 125kHz RFID
  • 64 Bit Changeable ID
  • 363 Bit Memory
  • Clone + Emulate IDs
  • Access Control
  • Computer Login

flexDF

7mm x 32mm x 0.4mm

Flex Needle

  • Basically discontinued
  • A little outdated, check out the FlexDF2
  • Enhanced Range
  • DESFire EV1 Chip
  • NFC Type 4
  • 56 Bit ID
  • Private ID Mode
  • 8kB User Bytes
  • DES
  • AES
  • Multi-AID
  • Encrypted Channel
  • Access Control
  • Enterprise
  • Share vCard
  • Launch URL
  • NFC Applications
  • Store Data
  • Launch Tasks
  • Stored Value
  • Developer Friendly
  • Computer Login

xGLO

3mm x 13mm

Injector

  • Discontinued
  • Potentially serious health hazards
  • X-Series Glowing Tritium Implant
  • Radioactive Tritium Gas
  • Cool Glowy!

TeslaFlex

Flex Needle

  • Custom conversion work, may be available by request
  • Convert your Tesla Model 3 key card into an implant
  • A bit outdated, maybe look at the VivoKey Apex. Though, they'll probably still do the conversion if you ask nicely

MagicBand Puck Conversion

Flex Needle

  • Custom conversion work, may be available by request
  • Convert your MagicBand Puck into an implant
  • Whatever you can use a MagicBand puck for, I'm not sure, sorry.
    Ride access maybe?
    See the link for more info :)

Payment Device Conversion
  • Custom conversion work, may be available by request
  • Convert your Payment Device into an implant
  • Paying for things!

Custom Work
  • Custom work, may be available by request
  • Whatever your mind and/or your wallet can imagine! (Provided Amal is willing...)
  • All the things!
